Activated Alumina Balls, Inert Ceramic Balls, and Alumina Ceramic Balls Explained in Detail
Ceramic balls are widely used in different industries, from petrochemicals and environmental protection to grinding and water treatment. However, not all ceramic balls are the same. The three most commonly used types—activated alumina balls, inert ceramic balls, and alumina ceramic balls—differ greatly in composition, properties, and applications. Choosing the right one is critical to achieving the best performance in your process.

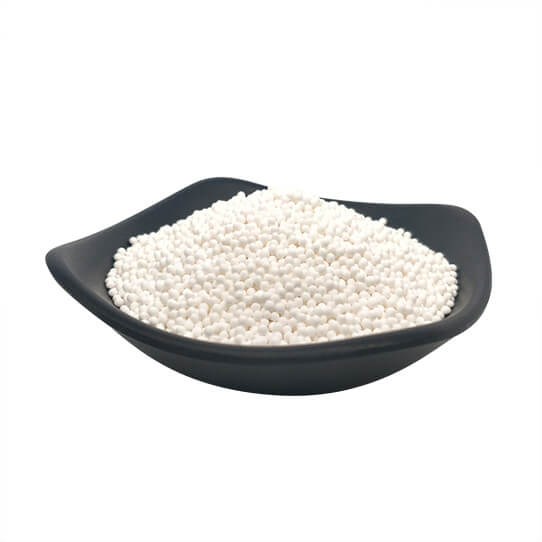

1. Activated Alumina Balls
- Composition & Content
Activated alumina balls are produced from aluminum hydroxide through a controlled thermal process that creates a highly porous structure. They typically contain 65%–75% Al₂O₃. - Physical Properties
- High surface area (200–350 m²/g)
- High porosity with uniform pore size distribution
- Excellent mechanical strength
- Resistant to most acids and alkalis
- Functions & Applications
Activated alumina balls are best known for their adsorptive and drying capabilities. They are commonly applied in:- Gas and air drying: Removing water vapor in compressed air systems and gas pipelines.
- Water treatment: Adsorbing fluoride, arsenic, and other impurities in drinking water.
- Catalyst carriers: Serving as a stable base for catalysts in petrochemical processes.
- Liquid purification: Used in desulfurization, hydrogen purification, and VOC removal systems.
2. Inert Ceramic Balls
- Composition & Content
Inert ceramic balls are usually made from a mixture of 20%–30% Al₂O₃, along with silica and other oxides. Unlike activated alumina, they are non-porous and chemically inert. - Physical Properties
- Dense and non-porous structure
- High mechanical strength and impact resistance
- Resistant to high temperatures and corrosive chemicals
- Long service life under harsh operating conditions
- Functions & Applications
Inert ceramic balls are widely used as support media in fixed-bed and packed-bed reactors. Their main roles include:- Supporting catalysts: Providing a stable foundation for catalysts in petrochemical, refinery, and fertilizer industries.
- Protecting catalyst beds: Preventing catalyst loss due to pressure drop or attrition.
- Improving flow distribution: Ensuring even liquid and gas flow inside towers and reactors.
- Thermal protection: Acting as a buffer layer to handle thermal expansion.
https://chempacking.cn/wp-content/uploads/2024/10/1644806638275507.jpg
3. Alumina Ceramic Balls
- Composition & Content
Alumina ceramic balls are engineered from high-purity alumina powder. Their Al₂O₃ content varies from 60% up to 99%, depending on the grade. Common categories include:- Medium alumina balls (60–75%) – economical option for general grinding.
- High alumina balls (80–92%) – improved wear resistance and hardness.
- Ultra-high alumina balls (95–99%) – premium grade with maximum durability.
- Physical Properties
- Mohs hardness of 9 (second only to diamond)
- High bulk density and low porosity
- Excellent wear resistance and thermal stability
- Chemically stable in most environments
- Functions & Applications
Alumina ceramic balls are mainly used in grinding, milling, and wear protection:- Grinding media: For ball mills in ceramics, pigments, cement, mining, and chemical processing.
- Protective linings: Applied in pipes, tanks, and machinery to resist abrasion.
- Thermal applications: Suitable for high-temperature processes where wear resistance is critical.
- Electronics and precision industries: As insulating and structural components.
4. Key Differences Between the Three
| Type | Al₂O₃ Content | Main Features | Typical Applications |
|---|---|---|---|
| Activated Alumina Balls | 65–75% | Porous, high adsorption, desiccant | Drying, water purification, catalyst carriers |
| Inert Ceramic Balls | 20–30% | Dense, chemically inert, strong | Reactor support, flow distribution, catalyst bed protection |
| Alumina Ceramic Balls | 60–99% | Hard, dense, wear-resistant | Grinding media, abrasion resistance, thermal stability |
5. How to Choose the Right Ceramic Ball
- For adsorption, drying, or purification → Choose Activated Alumina Balls.
- For catalyst bed support and protection → Choose Inert Ceramic Balls.
- For grinding, milling, or abrasion resistance → Choose Alumina Ceramic Balls.
Selecting the right material ensures longer equipment life, lower operating costs, and improved process efficiency.
