1. Introduction: What Is a Molecular Sieve?
A molecular sieve is a porous material capable of selectively adsorbing molecules based on their size and polarity. The term “sieve” refers to its ability to separate molecules in a mixture, much like a physical filter. However, instead of separating by physical barriers, molecular sieves work on the atomic level, using uniform pores within a crystalline structure to trap or exclude molecules.
Molecular sieves are most commonly made from synthetic zeolites, which are aluminosilicate crystals composed of silicon (Si), aluminum (Al), and oxygen (O) atoms. The structure forms a 3D network of interconnected pores and channels, each with a precisely defined diameter. These pores typically range from 3 to 10 angstroms, allowing molecular sieves to differentiate substances that vary only slightly in molecular size.
2. Chemical Composition and Structure
At the heart of molecular sieve technology is zeolite, a crystalline material characterized by its repeating tetrahedral framework:
- Each SiO₄ or AlO₄ tetrahedron shares oxygen atoms with neighboring units.
- The substitution of silicon by aluminum introduces a negative charge in the framework.
- This charge is balanced by exchangeable cations such as sodium (Na⁺), potassium (K⁺), or calcium (Ca²⁺).
This exchangeable cation feature gives molecular sieves their ion-exchange capability, allowing customization for different applications. The crystalline lattice and pore geometry dictate how the sieve interacts with gases or liquids.
3. Production Process of Molecular Sieves
Manufacturing molecular sieves involves several tightly controlled steps to ensure purity, pore uniformity, and stability.
Step 1: Raw Material Preparation
Raw materials include:
- Sodium silicate or colloidal silica as the silica source.
- Sodium aluminate or aluminum hydroxide as the alumina source.
- Sodium hydroxide to control alkalinity and aid crystallization.
Step 2: Gel Formation
The raw materials are mixed under specific temperature and pH conditions to form a homogeneous aluminosilicate gel. This gel acts as the precursor for the zeolite crystal.
Step 3: Hydrothermal Crystallization
The gel is heated in an autoclave at temperatures between 80–200°C. Over several hours to days, the gel crystallizes into zeolite crystals with uniform pore sizes.
Step 4: Filtration and Washing
The crystals are filtered, washed with deionized water to remove residual alkalis and impurities, and dried at controlled temperatures.
Step 5: Activation
Before use, the molecular sieve undergoes activation by heating to remove adsorbed water molecules from the pores. This step opens up the internal cavities, allowing them to adsorb target molecules during operation

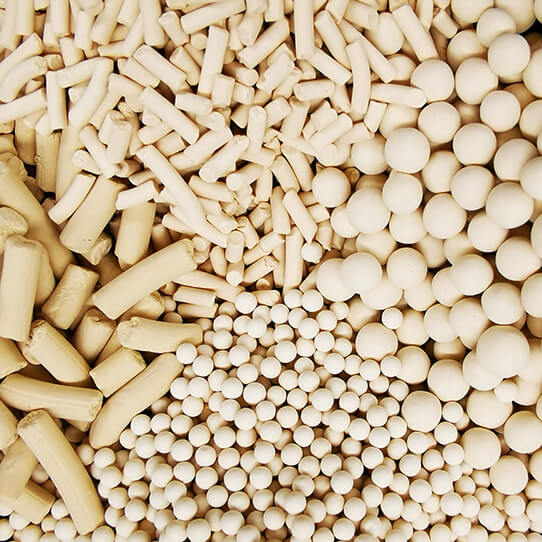

4. Common Types of Molecular Sieves
Molecular sieves are categorized based on pore size, which determines their application.
| Type | Pore Size (Å) | Main Function | Typical Use |
|---|---|---|---|
| 3A | 3 | Adsorbs water only; excludes larger molecules | Dehydration of alcohols, olefins, and refrigerants |
| 4A | 4 | Adsorbs water, ammonia, methanol, and CO₂ | Gas drying, solvent dehydration |
| 5A | 5 | Adsorbs normal paraffins; separates isomers | Hydrocarbon separation, air purification |
| 13X | 10 | Adsorbs CO₂, H₂S, and larger polar molecules | Natural gas purification, air separation, and refining |
Each type serves a unique purpose depending on molecular size and process conditions.
5. Working Principle of Molecular Sieves
Molecular sieves operate through selective physical adsorption. When a gas or liquid mixture contacts the sieve, smaller molecules penetrate the uniform pores and are adsorbed onto internal surfaces, while larger molecules are excluded.
The selectivity is governed by:
- Molecular size vs. pore diameter
- Polarity and dipole moment
- Temperature and pressure
- Cation type within the structure
For example, in gas dehydration, water molecules are strongly adsorbed due to their polarity, while non-polar gases such as nitrogen or methane pass through freely.
6. Industrial Applications
Molecular sieves are critical to a wide range of industries:
1. Petrochemical Industry
Used for drying and purifying hydrocarbons, separating paraffins, and removing trace impurities like CO₂ and H₂S.
2. Gas and Air Drying
Essential in natural gas processing, compressed air systems, and oxygen/nitrogen generation, where moisture removal prevents corrosion, freezing, and process disruptions.
3. Chemical Manufacturing
Used to control humidity and purity in the production of ethanol, ammonia, and specialty chemicals.
4. Refrigeration and Cooling Systems
Prevents moisture-induced blockages by removing residual water from refrigerants.
5. Pharmaceutical and Food Packaging
Maintains low humidity environments to protect sensitive materials from degradation or spoilage.
6. Environmental Protection
Used in emission control systems and industrial exhaust purification to capture harmful gases.
7. Regeneration of Molecular Sieves
Molecular sieves can be regenerated by removing the adsorbed substances through heating or vacuum desorption.
Typical conditions:
- Temperature: 200–300°C
- Gas flow: Dry air or nitrogen purge
- Cycle time: 2–4 hours, depending on load
Proper regeneration restores adsorption capacity and allows the sieve to be reused for thousands of cycles, offering excellent cost efficiency.
https://chempacking.cn/wp-content/uploads/2024/10/1643183418638303-100×100.jpg
8. Advantages Over Other Adsorbents
High adsorption selectivity and capacity
Strong thermal and mechanical stability
Regenerable and reusable
Long operational life
Suitable for both liquid and gas phase separations
