1. What Are Alumina Grinding Balls Made Of?

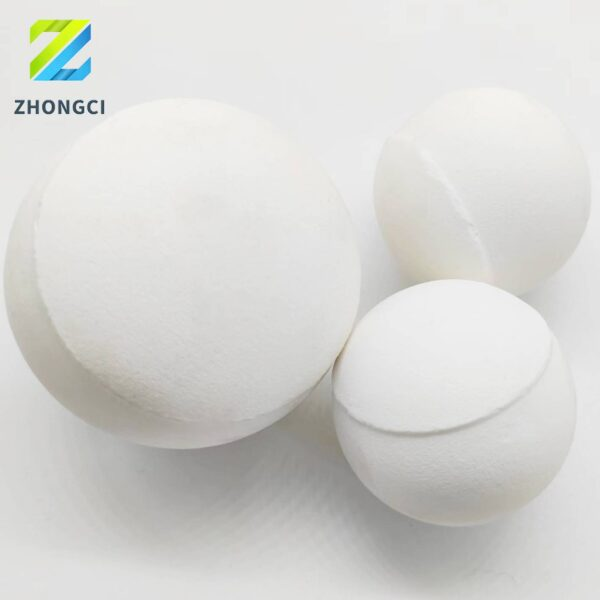

Alumina grinding balls are ceramic spheres used as grinding media in ball mills. Their primary component is Al₂O₃ (aluminum oxide), but depending on the grade and intended application, the formulation may include other oxides. The typical composition is:
- Aluminum Oxide (Al₂O₃): 17% to 99%
- Silicon Dioxide (SiO₂): Can be present in lower grades
- Magnesium Oxide (MgO): Often added to enhance sintering
- Iron Oxide (Fe₂O₃), Sodium Oxide (Na₂O), Calcium Oxide (CaO): Trace amounts
- Binders and Dispersants: Used during shaping and removed during firing
Higher alumina content = better performance, especially in applications requiring high wear resistance and purity.
https://chempacking.cn/wp-content/uploads/2025/04/37-600×600.jpg
2. How Are Alumina Balls Produced?
he production process includes five major steps:
🔹 a) Raw Material Selection
High-purity alumina powder is sourced and refined. Lower-grade balls may include clays or kaolin to reduce costs.
🔹 b) Mixing and Formulation
The powders are mixed with water and additives to form a uniform slurry. This may involve dispersants, plasticizers, or binders.
🔹 c) Forming
The wet material is shaped into balls using rolling, pressing, or extrusion techniques.
- For small balls (<5mm), spray drying or rolling is common
- Larger balls are typically pressed
🔹 d) Drying
Careful drying is critical to remove moisture without cracks.
🔹 e) Sintering
The green bodies are fired at 1350–1600°C in a kiln, where they densify and gain their mechanical strength and hardness. The higher the firing temperature and alumina content, the better the performance.
3. Differences in Alumina Content: What Does It Mean in Practice?
Alumina content directly affects the physical, chemical, and mechanical performance of the grinding ball. Here’s a breakdown of how:
| Alumina Content | Density (g/cm³) | Hardness (Mohs) | Typical Applications |
|---|---|---|---|
| 17–40% (Low) | ~2.5–2.9 | ~5–6 | General milling, basic fillers |
| 50–75% (Medium) | ~3.2–3.5 | ~7 | Ceramic glaze, mineral grinding |
| 85–95% (High) | ~3.6–3.8 | ~8 | Paints, coatings, chemical mills |
| 99%+ (Ultra-high) | ≥3.9 | 9 (almost sapphire) | Pharmaceuticals, electronics, precision ceramics |
✅ Higher Alumina = Higher Hardness + Lower Wear + Longer Service Life
❌ Lower Alumina = Lower Cost + Higher Contamination Risk + Faster Wear
4. Usage and Performance Differences
| Feature | Low Alumina Balls | High/99% Alumina Balls |
|---|---|---|
| Hardness | Moderate | Extremely high |
| Grinding Efficiency | Moderate | Very high (more output per hour) |
| Contamination | Can release iron or silica | Ultra-clean; no contamination |
| Thermal Stability | Limited | Excellent (resists >1000°C) |
| Price | Lower | Higher, but cost-effective long term |
| Lifespan | 1–3 months typical | 12+ months depending on usage |
5. Are There Premium and Substandard Grades?
Absolutely. There are big differences in the market:
🔹 Premium-Grade Alumina Balls:
- Made from high-purity materials
- Uniform particle size
- Fully sintered for low porosity
- High crushing strength (≥2000 N for small balls)
- Stable at high temperatures
- Clean surface, minimal dust
🔸 Substandard/Low-Grade Balls:
- Mixed with impurities or low-grade clay
- Poor sintering = porous structure
- Easily cracked or crushed
- Contaminates product during grinding
- Inconsistent performance across batches
For consistent industrial use, especially in pharmaceuticals, fine chemicals, or electronics, always choose premium quality from trusted suppliers.
6. Application Fields of Alumina Grinding Balls
Alumina grinding balls are used in a wide range of industries:
⚙️ Industrial Applications:
- Ceramic tile factories: Grinding raw clay, feldspar, and glaze
- Cement industry: For blending and grinding cement materials
- Mining and metallurgy: For ore beneficiation
- Chemical processing: As grinding media in chemical reactors
- Paints and coatings: For dispersing pigments
💊 High-Tech & Sensitive Fields:
- Pharmaceutical industry: Milling active ingredients with no contamination
- Electronics & semiconductors: Grinding silicon or advanced ceramics
- Environmental industry: Used in catalyst carriers, pollutant filtration
7. Why Choose Zhongci Environmental Ceramics Materials?
At Zhongci Environmental Ceramics Materials, we are committed to providing high-quality alumina grinding balls suitable for all types of industries and equipment.
🔹 What We Offer:
- 💎 Full range from 17% to 99% alumina content
- 🧪 Custom formulations available on request
- 📦 Bulk supply with flexible packaging options
- 🧠 Technical support and consultation
- 🚚 Fast delivery across domestic and international markets
- ✅ Quality control with guaranteed performance specs
Whether you’re using small lab-scale mills or large industrial ball mills, we can match your exact requirements with the right grade of alumina balls.
