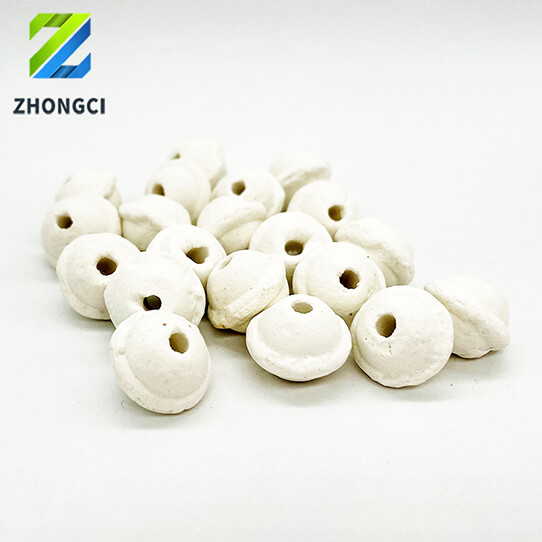

Perforated ceramic ball is developed on the basis of inert ceramic ball. It has not only has adequate mechanical strength, chemical stability and thermal stability, but also has larger surface area and free void, thus increasing the fluids dispersion and flux, reduce the resistance of the system.
1. What Are Perforated Heat Storage Ceramic Balls?
Perforated heat storage ceramic balls are specialized ceramic materials designed for thermal energy storage and heat exchange systems. These balls feature a unique perforated structure—meaning they contain multiple through-holes or pores—which significantly increases their surface area, heat transfer rate, and gas–solid contact efficiency.
They are typically made from high-purity alumina, corundum, or other refractory ceramic materials, giving them excellent heat resistance, mechanical strength, and chemical stability even under extreme operating conditions.
Compared to regular solid ceramic balls, the perforated design enhances airflow, heat absorption, and release performance, making them an essential material in industrial furnaces, regenerative burners, and heat recovery systems.
2. How Are Perforated Heat Storage Ceramic Balls Made?
The production of perforated heat storage ceramic balls requires advanced processing technology to achieve both structural integrity and thermal performance.
Here’s an overview of the typical manufacturing process:
Quality Inspection
After sintering, the balls are tested for porosity, compressive strength, size uniformity, and thermal performance to ensure consistent quality.
Raw Material Preparation
High-quality ceramic powders such as alumina (Al₂O₃), silica (SiO₂), and magnesia (MgO) are selected. These materials are known for their high melting points and resistance to thermal shock.
Mixing and Shaping
The raw materials are mixed with binders and additives to improve plasticity, then shaped into spherical forms using precision molds. The perforations are created either through mechanical punching, injection molding, or extrusion techniques.
Drying and Pre-Sintering
The shaped balls are dried to remove moisture and then pre-fired at low temperatures to strengthen their structure before final sintering.
High-Temperature Sintering
The pre-formed balls are sintered in a high-temperature kiln (typically 1400–1600°C). This process gives them the necessary hardness, density, and heat-resistance properties for industrial use.
3. Main Functions and Applications
Perforated heat storage ceramic balls are used to store and release heat efficiently, improving the energy efficiency of various thermal systems. Their perforated structure allows better air circulation and heat transfer, making them highly effective in dynamic heating environments.
Common Applications Include:
- Regenerative thermal oxidizers (RTOs) for waste gas treatment
- Hot blast stoves in the metallurgical industry
- Heat recovery systems in chemical and petrochemical plants
- Burner systems and industrial furnaces for temperature stabilization
- Thermal storage units for energy-saving and emission-reduction processes
Because of their excellent thermal shock resistance and mechanical strength, they can withstand repeated heating and cooling cycles without cracking or deforming.
4. Difference Between Perforated Heat Storage Ceramic Balls and Other Ceramic Balls
While all ceramic balls are made for high-temperature and chemical-resistant purposes, their design and function differ significantly:
| Type | Main Composition | Structure | Primary Function | Key Feature |
|---|---|---|---|---|
| Perforated Heat Storage Ceramic Ball | Alumina, corundum, etc. | Porous / perforated | Heat storage & heat transfer | Maximizes gas–solid contact and energy efficiency |
| Alumina Ceramic Ball | >90% Al₂O₃ | Solid | Catalyst support / tower packing | High compressive strength and chemical stability |
| Ceramic Grinding Ball | Al₂O₃, ZrO₂ | Solid | Material grinding & dispersion | High hardness and wear resistance |
In summary, perforated heat storage ceramic balls are not designed for grinding or chemical adsorption—they are specifically engineered for thermal energy storage and rapid heat exchange.
5. How to Choose the Right Perforated Heat Storage Ceramic Ball
When selecting perforated ceramic balls for your system, consider the following factors:
- Material Composition – Choose alumina or corundum-based materials for higher temperature stability.
- Operating Temperature – Verify that the ball’s rated temperature matches your furnace or RTO’s working conditions.
- Porosity and Hole Design – More perforations increase surface area and heat transfer, but may reduce mechanical strength; find the right balance.
- Ball Size – Typical sizes range from 20 mm to 60 mm; smaller balls improve heat exchange rate, while larger ones enhance airflow.
- Application Environment – Consider gas composition, pressure, and potential chemical exposure.
For best results, consult professional ceramic engineers to match product parameters with your specific process requirements.
https://chempacking.cn/wp-content/uploads/2024/10/1646214541914424.jpg
6. Why Choose Pingxiang Zhongci Environmental Ceramics Material Co., Ltd.
At Pingxiang Zhongci Environmental Ceramics Material Co., Ltd., we specialize in producing high-performance perforated heat storage ceramic balls designed for energy-saving and environmental protection systems.
Our products feature:
- Excellent thermal efficiency and durability
- Uniform perforation design for superior airflow and heat transfer
- High mechanical strength and corrosion resistance
- Custom sizes and materials available for specific applications
We have decades of experience serving industries such as metallurgy, chemical engineering, environmental protection, and energy recovery.
👉 For technical consultation or to request samples, visit our website:
🌐 www.chempackings.com
Perforated heat storage ceramic balls play a crucial role in modern high-temperature and heat recovery systems. Their innovative design ensures efficient heat transfer, reduced energy consumption, and long service life. Whether used in regenerative furnaces or environmental systems, they offer unmatched reliability and performance.
For high-quality perforated ceramic balls and professional support, trust Pingxiang Zhongci Environmental Ceramics Material Co., Ltd. — your expert partner in advanced ceramic solutions.
