Introduction: Why Metal Packings Matter

Metal packings are essential components in industrial separation processes, particularly in distillation, absorption, stripping, and scrubbing systems. They provide high surface area, excellent durability, and reliable chemical resistance, which make them more efficient compared to many traditional fillers. Because of their strength, stability, and adaptability, metal packings are widely used in the petrochemical industry, chemical engineering, environmental protection, and pharmaceutical manufacturing.

In this guide, we will explain:

• What metal packings are and their main functions.
• The different types of metal packings and how they work.
• The raw materials used in production and why they matter.
• Key industrial applications across multiple industries.
• How to choose the most suitable packing for your project.
• Why Zhongci Environmental Ceramics Materials is the supplier you can trust.

https://chempacking.cn/wp-content/uploads/2024/10/1644401698945520.jpg

What Are Metal Packings?

Metal packings are engineered elements placed inside columns or towers to enhance contact between gas and liquid phases. By increasing contact surface area, they improve mass transfer efficiency, reduce energy use, and enable more effective separation or absorption.

Compared to ceramic packings or plastic packings, metal packings offer:

• Higher mechanical strength – resist crushing and deformation.
• Better thermal stability – suitable for high-temperature operations.
• Superior corrosion resistance – when made from stainless steel or titanium alloys.
• Longer service life – reducing downtime and replacement costs.

Types of Metal Packings

1. Metal Pall Rings

• The most widely used random packing.
• Features windows and tabs that enhance liquid distribution.
• Applications: distillation towers, absorption columns, scrubbers.
• Benefits: low pressure drop, high capacity, and efficiency.

2. Metal Raschig Rings

• Simple cylindrical shape (like short tubes).
• Known for strength and load-bearing ability.
• Used in petroleum refining and heavy chemical processes.
• Best suited for high-load distillation and stripping towers.

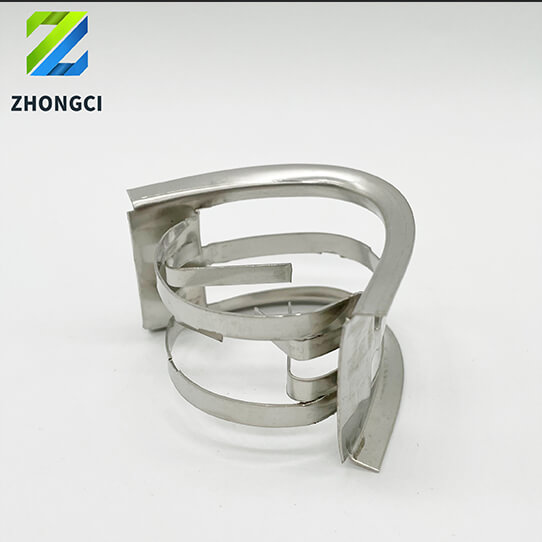

3. Metal Saddle Rings (Intalox Saddles)

• Curved saddle shape with large openings.
• Provides excellent gas-liquid distribution and low resistance.
• Often used in gas absorption towers, flue gas treatment, and scrubbing systems.

4. Metal Dixon Rings

• Constructed from woven wire mesh, providing very high surface area.
• Common in laboratory distillations, fine chemical production, and specialty separations.
• Ideal for small-diameter columns where efficiency is critical.

5. Metal Structured Packings

• Made from corrugated sheets or wire gauze stacked in a precise arrangement.
• Provide very high efficiency with minimal pressure drop.
• Widely applied in pharmaceuticals, fine chemicals, and solvent recovery.
• Recommended when maximum separation efficiency is required.

https://chempacking.cn/wp-content/uploads/2024/10/1644402190669298.jpg

Raw Materials for Metal Packings

Choosing the right material directly affects performance, lifespan, and cost-efficiency.

• Stainless Steel (304, 316, 410, etc.) – Excellent balance of corrosion resistance, durability, and affordability.
• Carbon Steel – More economical, but only for non-corrosive environments.
• Titanium and Titanium Alloys – Exceptional corrosion resistance; used in chlorine, seawater, and harsh chemical processing.
• Copper and Brass – Provide good heat transfer; used in specific thermal applications.
• Aluminum – Lightweight and corrosion-resistant; suitable for environmental protection equipment.

Functions of Metal Packings

Metal packings perform several important functions inside industrial towers:

1. Increase Contact Area – Enhance gas-liquid interaction for improved separation.
2. Reduce Pressure Drop – Allow gases to pass with minimal resistance.
3. Improve Efficiency – Achieve higher product purity in distillation and absorption.
4. Enhance Durability – Withstand high loads, high pressure, and extreme conditions.
5. Extend Equipment Life – Reduce wear and maintenance costs.

Applications of Metal Packings

Metal packings are indispensable in multiple industries:

• Petroleum Refining – Fractionation towers, catalytic cracking units.
• Chemical Industry – Gas absorption columns, stripping systems, acid recovery.
• Environmental Protection – Waste gas scrubbing, desulfurization, and wastewater treatment.
• Pharmaceuticals – Solvent recovery and fine distillation processes.
• Gas Separation – Hydrogen recovery, CO₂ absorption, and air separation units.

How to Choose the Right Metal Packing

When selecting metal packing, consider:

1. Operating Conditions
   • High temperature? Corrosive chemicals? High pressure?
   • Example: Titanium packings for highly corrosive chlorine gas.
2. Column Design and Size
   • Large towers often use Pall Rings or Raschig Rings.
   • Small columns may use Dixon Rings or structured packings.
3. Performance Requirements
   • High separation efficiency → choose structured packings.
   • Cost-effectiveness → choose carbon steel or stainless steel random packings.
4. Budget and Longevity
   • Stainless steel offers a good balance of cost and durability.
   • Titanium is expensive but essential for corrosive media.

Why Choose Zhongci Environmental Ceramics Materials?

At Zhongci Environmental Ceramics Materials (🌐 www.chempackings.com), we specialize in high-performance metal packings for every industry.

• ✅ Full Range of Products – Pall Rings, Raschig Rings, Saddle Rings, Dixon Rings, and Structured Packings.
• ✅ Custom Manufacturing – We provide tailored sizes and materials to match your project.
• ✅ Global Quality Standards – All products are tested for strength, corrosion resistance, and efficiency.
• ✅ Expert Guidance – Our engineers help you select the most suitable packing for your exact needs.
• ✅ Competitive Pricing & Reliable Delivery – Ensuring cost-effective and timely solutions.

Whether you are upgrading a petrochemical distillation tower, installing a gas scrubbing system, or designing a pharmaceutical separation unit, our team can supply the right packing materials to help you reduce costs and improve performance.
