Ion exchange resins are polymer beads with charged functional groups used to remove ions from water — for softening, demineralization, dealkalization, nitrate removal, TOC polishing and more. This guide explains the resin types (strong/weak anion and cation, gel vs macroporous, selective resins), how they work, how to pick the right resin for your feedwater and process, regeneration basics, typical specs and price ranges, and practical maintenance tips.

1) What is an ion exchange resin

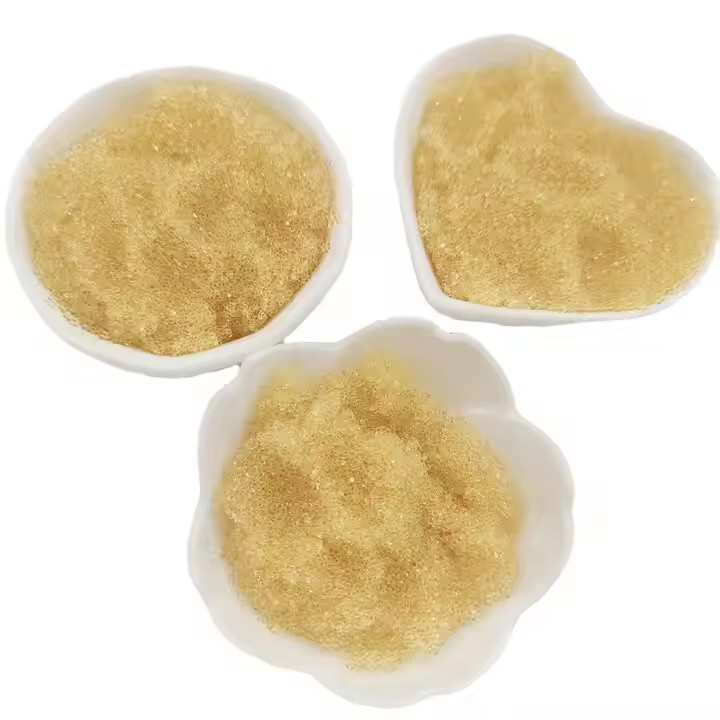

An ion exchange resin is a spherical polymer bead (typically polystyrene cross-linked with divinylbenzene or an acrylic matrix) with attached functional groups that exchange ions in water by an electrochemical replacement mechanism. In water treatment these resins are used to remove hardness (Ca²⁺/Mg²⁺), replace dissolved salts (deionization), remove nitrate/sulfate, reduce silica or organics, or polish RO permeate to ultrapure levels.

2) Main resin families used in water treatment

A. Strong Acid Cation (SAC) — sulfonic acid groups (—SO₃H). Used for softening (in Na⁺ form) and cation removal for demineralization (in H⁺ form). Typical applications: boiler feed, softening, industrial process water.

B. Weak Acid Cation (WAC) — carboxylic groups (—COOH). Good for removing alkalinity (dealkalization) and some heavy metals; they regenerate differently and are often used when alkalinity removal is the goal.

C. Strong Base Anion (SBA) — quaternary ammonium functional groups (OH⁻ form used for demineralization). SBA resins are subdivided into Type I and Type II (different quaternary structures with different selectivity and regeneration efficiencies). They remove strong-acid anions (chloride, sulfate) and, when in OH⁻ form, combine with H⁺ from cation resin to form pure water.

D. Weak Base Anion (WBA) — primary/secondary/tertiary amine groups. These resins are often preferred for removing organic acids, CO₂ (alkalinity), and lower-strength anions; they can be more economical for certain polishing tasks and behave differently at varying pH.

E. Specialty / Selective Resins — chelating resins (for heavy metals), nitrate-selective, fluoride-selective, high-temperature resins, and resins designed specifically for organics or PFAS removal. Use these where one or two target ions must be preferentially removed.

F. Mixed-Bed & Mixed-Media — physical blends or mixed beds (cation + anion) for ultrapure water polishing or tailored removal tasks.

Gel vs Macroporous: Gel resins have a dense gel structure (good capacity for common ions), while macroporous resins contain large pores — better for organic/colloid-bearing or “punishing” waters where fouling is a concern. Choose macroporous for better physical strength and easier cleaning when organics are present.

3) Key physical & chemical specs you’ll see on resin datasheets

Total Exchange Capacity (eq/L or meq/g): how many equivalents of ions the resin can exchange (higher = more capacity). Example specs: typical SAC or high-capacity resins ~1.6–2.0 eq/L (depends on form and grade).

Moisture / Water Retention (%): gives an idea of bead swelling and hydration.

Particle Size / Mean Diameter (µm) and Uniformity Coefficient: impact pressure drop and kinetics — finer beads = faster kinetics but higher pressure drop.

Matrix & Cross-linking (% DVB): 4%, 8%, 10% DVB are common. Higher cross-linking increases mechanical/chemical resistance but can reduce apparent capacity for bulky ions.

Ionic Form (Na⁺, H⁺, Cl⁻, OH⁻): resins are supplied in one ionic form but are converted during service/regeneration for the intended application.

4) How ion exchange works in simple practical terms

Service: Feedwater flows through a resin bed. Target ions are held by functional groups while the resin releases its counter-ion (for example, a softener in Na⁺ form releases Na⁺ and captures Ca²⁺/Mg²⁺).

Breakthrough & exhaustion: When capacity is used up, target ions begin to appear in the effluent (breakthrough).

Regeneration: A concentrated regenerant (e.g., NaCl brine for softeners, HCl for cation H⁺ resins, NaOH for anion OH⁻ resins) flushes the bed, displacing captured ions and restoring the resin to service form.

5) Practical selection guide

Full feedwater analysis (Ca, Mg, Na, Cl, SO₄, HCO₃, NO₃, SiO₂, TOC, iron, manganese, pH, temperature, turbidity).

Define treatment goal(s): softening, full demineralization (DI), dealkalization, nitrate removal, TOC removal, mixed-bed polishing, or specialty ion removal.

Choose the functional family first (SAC, SBA, WBA, chelating, mixed bed) based on the goal.

Decide matrix & porosity: pick macroporous if feed contains organics or particulate risks; gel if feed is clean and maximum capacity is primary.

Select capacity / grade: higher capacity resins (check eq/L) for fewer regenerations; but consider kinetics — sometimes a slightly lower capacity resin with faster kinetics performs better in a given EBCT.

Consider fouling risks & pretreatment: if chlorine, iron or organics are present you must pre-treat (activated carbon, iron filtration, coagulation, micro/ultrafiltration). Anion resins are especially sensitive to oxidants.

Regeneration logistics: Ensure you can supply regenerant chemicals (NaCl, HCl, NaOH) safely and handle regenerant waste. Typical brine strength for softeners is around 10% NaCl introduced during regeneration; typical anion regeneration uses caustic at a few % (4% is a common working concentration).

Pilot test when possible: always pilot or bench-test with your feedwater (especially for mixed beds, organics removal, or selective ion removal) — lab/pilot results avoid costly mistakes.

6) Regeneration — common regenerants & practical dosages

Softening (SAC in Na⁺ form): regenerate with salt brine. Brine strength during introduction is typically targeted at about 10% NaCl (optimal brining practices vary with design). Regeneration dosage is normally expressed in kg salt per ft³ or grams per liter of resin — consult supplier for exact salt dose.

Demineralization (SAC H⁺ + SBA OH⁻): cation resin (H⁺ form) regenerated with HCl or H₂SO₄; anion resin (OH⁻ form) regenerated with NaOH (typical working caustic strength often ~4% for many processes; amount expressed as g NaOH per L or lb/ft³). Some cross-regeneration and special cleaning steps use acid + caustic sequences.

Weak base anion regeneration: WBA resins can be regenerated with milder alkaline solutions (soda ash, NaOH) or brine depending on resin and application; check supplier guidance.

7) Fouling, oxidation and common failure modes — what to watch for

Chlorine & oxidants: Strong oxidants (free chlorine, ozone, peroxides) can chemically damage functional groups — anion resins are particularly sensitive and lose capacity when oxidized. Always remove oxidants (e.g., carbon filter, sulfite) before the ion exchange stage if levels are significant.

Iron & manganese: Even small iron levels can cause irreversible fouling and capacity loss — pre-filtration and sequestration are often required for waters >0.1–0.5 mg/L Fe.

Organics / TOC: Natural organic matter and oils can coat resin beads and reduce capacity; acrylic or specially formulated anion resins are often chosen when organics are an issue. Regular cleaning and periodic oxidative/acid/base cross-cleaning procedures recover performance if done properly.

8) Typical resin specs

Total exchange capacity: SAC/WAC ~1.7–2.0 eq/L; SBA/WBA values vary (example product: ~1.6 eq/L for some anion resins in OH⁻ form).

Moisture content: 40–55% typical depending on resin and ionic form.

Particle size: 300–800 µm typical; uniformity coefficient ≤1.5–1.8 for high quality resins.

9) Common mistakes to avoid when buying ion exchange resins

Buying the “cheapest” resin without considering feedwater fouling (organics/chlorine/iron) — leads to rapid failure.

Choosing the wrong ionic form (e.g., buying Cl⁻ form when you need OH⁻ for demineralization).

Not planning regeneration/waste handling logistics (chemical storage, disposal).

Skipping pilot tests for challenging waters (organics, high silica, high hardness, nitrate, PFAS).

https://chempacking.cn/wp-content/uploads/2025/04/Various-ceramic-balls.png

10) Quick decision flow (one-paragraph summary)

If your feedwater is mostly hardness → choose SAC (Na⁺ softening) and plan brine regeneration (≈10% NaCl brine). If your goal is full demineralization/polishing → use SAC (H⁺) + SBA (OH⁻) (or mixed beds) and plan HCl + NaOH regeneration protocols. If organics or fouling is expected → prefer macroporous or acrylic anion resins and include pre-filtration/activated carbon to remove chlorine/organics. For selective metal or nitrate removal → consider specialty / selective resins and pilot testing.

11) Short FAQ

Q: Are anion resins sensitive to chlorine?
A: Yes — oxidants (including free chlorine) degrade anion resins and reduce capacity; pre-dechlorination is recommended.

Q: How often do ion exchange resins need replacement?
A: Depends on operating conditions, fouling, and regeneration practices — from a few years to a decade. Proper pretreatment, cleaning and correct regeneration extend life. Always plan for periodic testing and pilot evaluation.

12) Example “what to ask the resin supplier” checklist

What is the total exchange capacity (eq/L) in the intended service form?

Matrix and crosslinking % (styrenic PS-DVB or acrylic; % DVB).

Particle size & uniformity coefficient.

Recommended regenerant chemicals and dosages / BV and contact time.

Recommendations for pretreatment if feed contains chlorine, iron, silica or organics.
