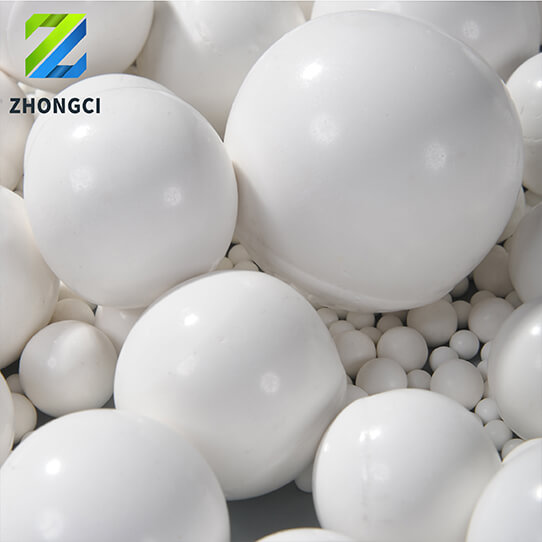

Zirconia ceramic grinding balls, also known as zirconium oxide balls, are high-performance grinding media made from zirconium dioxide (ZrO₂). These balls are prized for their superior hardness, high density, and excellent wear resistance, making them ideal for precision grinding and dispersion applications. Unlike ordinary alumina or glass beads, zirconia balls provide higher efficiency and longer service life in grinding operations, even under extreme conditions.

1. How Zirconia Ceramic Grinding Balls Are Made

The production of zirconia grinding balls involves a sophisticated manufacturing process to ensure purity, strength, and uniformity:

1. Raw Material Preparation
   High-purity zirconium dioxide powder (often stabilized with yttria or magnesia) is mixed with binding agents and sometimes with minor additives to enhance sintering performance.
2. Forming
   The mixture is shaped into spherical forms using advanced molding or rolling granulation technology to ensure perfect roundness and consistent size.
3. Drying and Pre-sintering
   The green (unfired) balls are dried and pre-sintered to remove moisture and organic binders, which improves the final structural integrity.
4. High-Temperature Sintering
   The balls are sintered in a high-temperature kiln (usually between 1350°C–1600°C), achieving a dense, pore-free structure that gives zirconia its outstanding hardness and strength.
5. Polishing and Classification
   After sintering, the balls are precision polished and classified according to diameter tolerance and surface smoothness. The final product has a mirror-like finish for efficient grinding.

2. Applications of Zirconia Ceramic Grinding Balls

Zirconia grinding balls are widely used in industries that require fine grinding, high purity, and minimal contamination, including:

• Paints, inks, and coatings – for dispersion and mixing of pigments and additives.
• Ceramic and electronic materials – to grind high-purity materials without contamination.
• Pharmaceutical and food industries – for safe and non-toxic grinding of powders and ingredients.
• Battery materials – for cathode and anode active material processing.
• Chemical and petrochemical industries – for catalyst grinding and particle size reduction.
• Nanotechnology – for ultrafine grinding and producing nanoscale powders.

Their ability to maintain high performance under high-energy milling conditions makes zirconia balls a preferred choice in ball mills, attritors, and planetary mills.

3. Are There Different Types or “Contents” of Zirconia Balls?

Yes. Zirconia balls are categorized based on zirconia content and stabilizing agents:

1. Yttria-Stabilized Zirconia (YSZ) – typically 95% ZrO₂ + 5% Y₂O₃; offers the best mechanical strength and wear resistance.
2. Magnesia-Stabilized Zirconia (MSZ) – good thermal stability, ideal for high-temperature environments.
3. Partially Stabilized Zirconia (PSZ) – offers a balance of toughness and cost-effectiveness.
4. Composite Zirconia-Alumina Balls – combines zirconia hardness with alumina affordability.

Higher zirconia content means greater density, hardness, and longer lifespan, but also higher cost. Therefore, the right type depends on your specific grinding needs and the abrasiveness of your materials.

4. How to Choose the Right Zirconia Grinding Ball

When selecting zirconia grinding balls, consider the following key factors:

1. Material Compatibility – Choose balls that will not contaminate your material. For high-purity processing, YSZ is the best choice.
2. Ball Size – Smaller balls (0.1–3 mm) are suitable for fine dispersion and nanomaterial grinding; larger balls (5–30 mm) are used for coarse grinding.
3. Density and Hardness – High-density zirconia balls provide more impact energy and efficiency in grinding.
4. Mill Type – Match the ball properties with your equipment (planetary mill, attritor, vibratory mill, etc.).
5. Cost and Durability – For long-term industrial use, premium YSZ balls offer the best value due to their extended lifespan.

https://chempacking.cn/wp-content/uploads/2024/10/1644808963489045.jpg

5. Why Choose Pingxiang Zhongci Environmental Ceramics Material Co., Ltd.

At Pingxiang Zhongci Environmental Ceramics Material Co., Ltd., we manufacture and supply high-quality zirconia ceramic grinding balls with excellent roundness, uniform density, and precise sizing. Our products are engineered to meet the demanding requirements of chemical, electronic, and material processing industries worldwide.

We offer customized solutions based on your grinding needs — from zirconia content selection to size matching — ensuring the best performance and cost efficiency for your process.
👉 Visit our website for technical consultation and product details:
🌐 www.chempackings.com

Zirconia ceramic grinding balls represent the next level of precision grinding technology — combining hardness, purity, and chemical stability in one material. By selecting the right type and size, you can greatly improve grinding efficiency, reduce contamination, and extend equipment life.

For reliable supply and professional guidance, trust Pingxiang Zhongci Environmental Ceramics Material Co., Ltd., your expert partner in advanced ceramic materials.
