PP Baffle Demister Flat Blade C/S-type FRP/304 Vane Pack Mist Eliminator for Desulfurization Tower and Spray Tower
The mist eliminator is mainly composed of fixed devices such as corrugated blades, plates, clips, etc. During wet desulfurization, during the operation of the absorption tower, it is easy to generate “mist” with a particle size of 10–60 microns, and the “mist” is not only It contains water, and it also dissolves sulfuric acid, sulfate, sulfur dioxide, etc., and also causes contamination of fans, heat exchangers and flue. Defog before leaving the absorption tower.
Specification of PP Baffle Demister Flat Blade C/S-type FRP/304 Vane Pack Mist Eliminator for Desulfurization Tower and Spray Tower
Item | Thickness | Pitch size | Material | Remark |
Desulphurization Tower Mist Eliminator | 2.5-3mm | 25mm | PP | 170 C Type with hook /without hook 235 S Type Dual channel |
2.5-3mm | 30mm | PP | ||
| 2.5-3mm | 35mm | PP | ||
| 2.5-3mm | 40mm | PP | ||
| 2.5-3mm | 45mm | PP | ||
FRP Mist Eliminator | 2.5-3mm | 25mm | FRP | 170 C Type with hook /without hook 235 S Type Dual channel |
| 2.5-3mm | 30mm | FRP | ||
| 2.5-3mm | 35mm | FRP | ||
| 2.5-3mm | 40mm | FRP | ||
| 2.5-3mm | 45mm | FRP |
Items | Technical Data | ||
Material | FRP | Stainless steel | Fiberglass |
| Resistant temperature | 70-80°C | 200°C | 130°C |
| Baffle plate thickness | 2.5-3mm | according to customer requirements | 2.5-3mm |
| Price performance | Lower | Higher | Higher |
Form | Horizontal type (plate type), Herringbone type (weir type), V type, Combined type, etc. | ||
| Area of drift eliminator | The inner diameter of the desulfurization tower area or cross-section area of flue. | ||
| Flow velocity of air tower | Plate type 3-4 m/s, weir type 2.5-5.5 m/s. | ||
| Degree | Two degrees. | ||
| Interval and height between baffle plates | Designed by different desulphurization process. | ||
| Flushing layers of flushing systems | Upper and bottom of first-degree drift eliminator, bottom of second-degree drift eliminator, configurable and topper layer of some drift eliminator be flushed in hand. | ||
| Amount of droplets discharged by mist eliminator | ≤75mg/Nm3. | ||

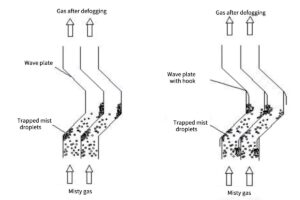

Baffled plate mist eliminators are widely used in wet processes. The distance between the two plates in the baffle demister is 25-35mm. The liquid droplets in the flue gas flow in a zigzag manner in the baffle and continuously collide with the wall to condense into large particles. Under the action of gravity, they slide down along the demister blades until they reach the slurry pool, thereby removing the liquid droplets carried by the flue gas. The baffle type mist eliminator can be divided into two types in terms of structural form: flat plate type and ridge type. The ridge type mist eliminator has a high design flow rate, and the fog droplets that collide with the corrugated plate can concentrate and flow down, reducing the phenomenon of smoke entrainment.
The mist removal area is also larger than the horizontal type, so the mist removal efficiency is high. The concentration of droplets discharged at the outlet is ≤ 50 mg/m ³. General conventional design requirements require a droplet concentration of ≤ 75mg/m emitted from the outlet of the mist eliminator ³.
The mist eliminator is used to separate the droplets entrained by the gas in the tower to ensure mass transfer efficiency and reduce costs.In order to reduce the value loss of materials and improve the operation of the compressor after the tower, a mist eliminator is generally installed at the top of the tower, which can effectively remove 3–5um droplets. If a mist eliminator is installed between the trays, it can not only ensure the mass transfer efficiency of the trays, but also reduce the spacing between the trays. Therefore, mist eliminators are mainly used for gas-liquid separation. Can also be used as an air filter for gas separation.
